首页 > 产品展示 > 滑台模组系列 > 钢带全封闭丝杆模组

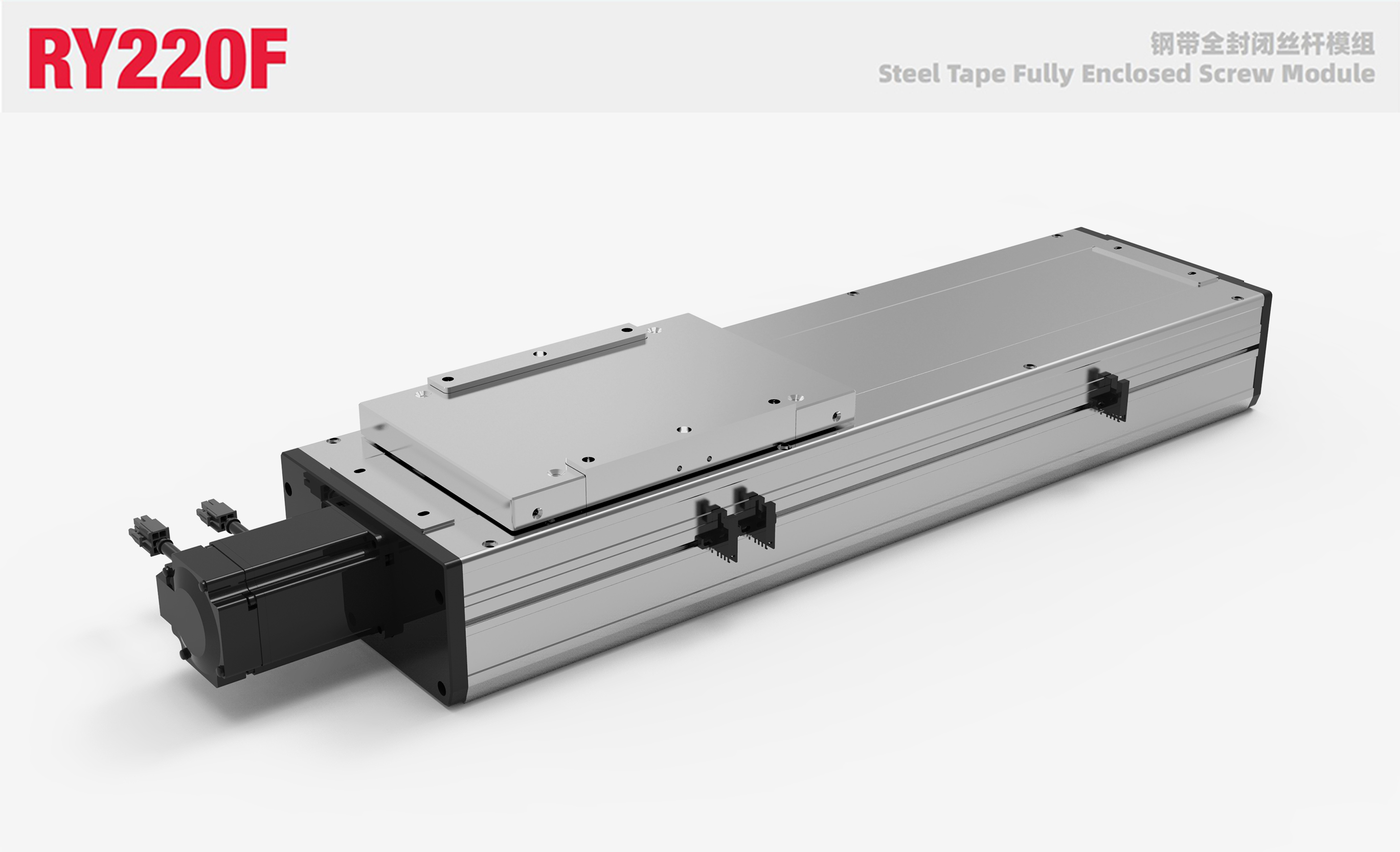

RY220F steel belt fully enclosed screw module

直线模组,我们负责永远的理念,以此的开发,高质量的产品,值得信赖,低成本的产品,长期的产品,且可信赖,专业的服务提供者,专业生产商,负责是嘉翼的永远理念,并以此开发高质量,邓生-18822958970

产品参数

The RY220F semi-enclosed belt module has the following advantages:

1. The core components are imported from Taiwan, including screw rods and guide rails.

2. The body adopts a new type of aviation aluminum material, which has higher rigidity and lighter weight.

3. High stability, high reliability, with an accuracy of up to 0.02mm.

4. Smooth operation, no wear and tear, minimal maintenance, long service life.

5. Compact size, space saving, easy to build.

6. The requirements for the motor are not high, and it can adapt to mainstream motors on the market.

Engineering one-on-one tailored selection, helping you save time and make products more superior.

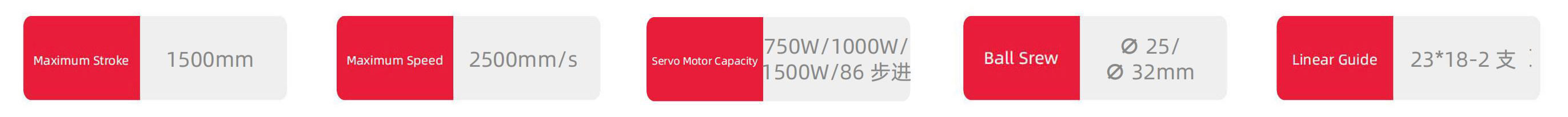

Parameter selection

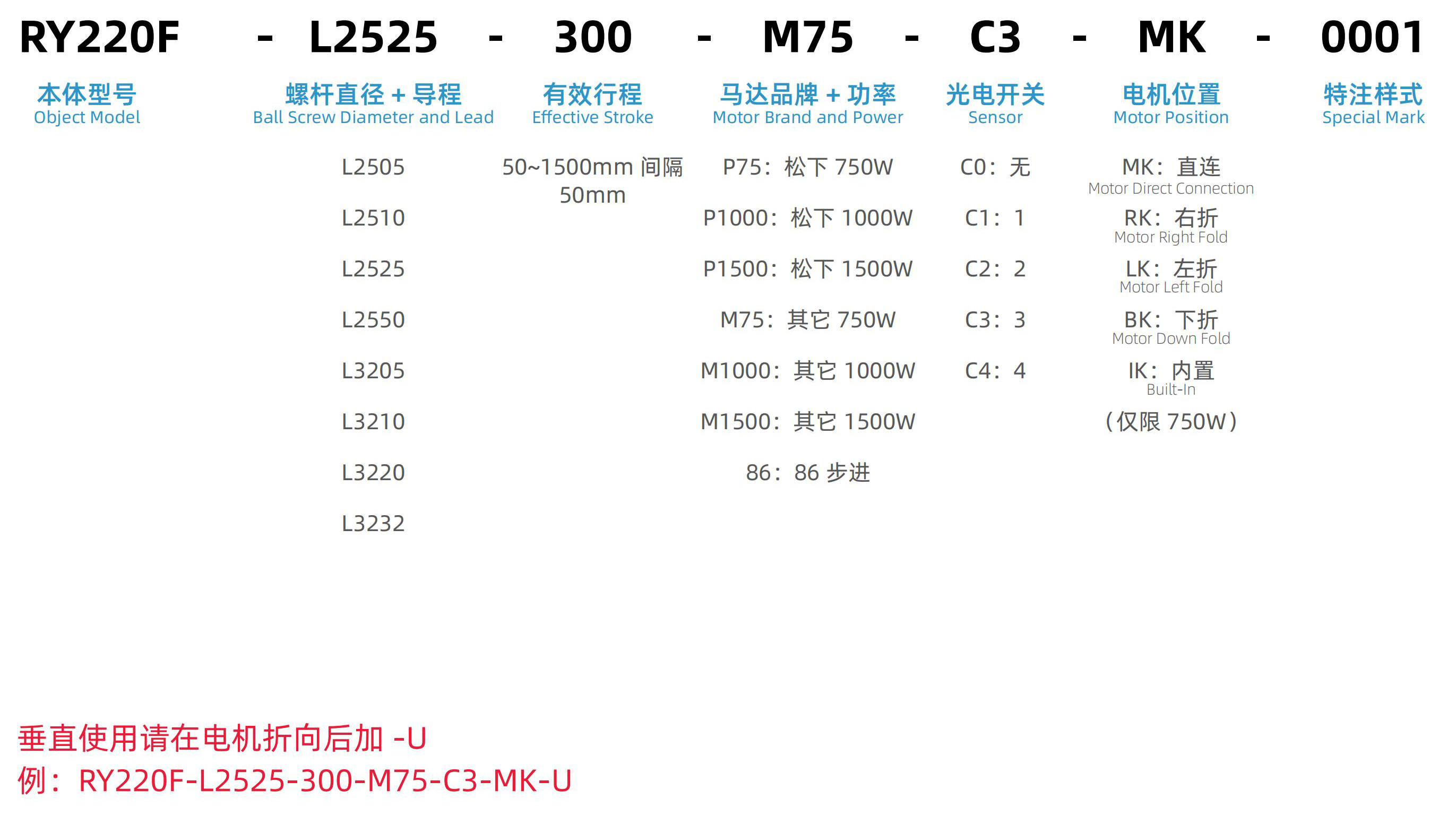

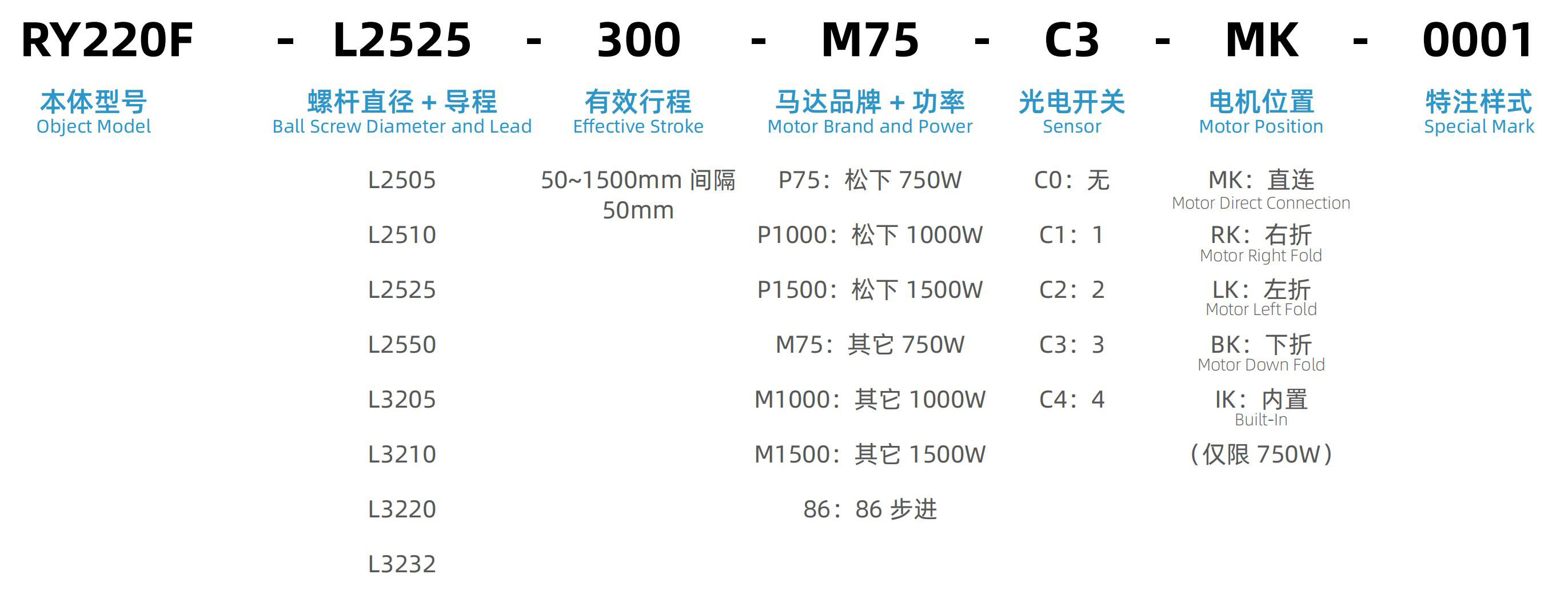

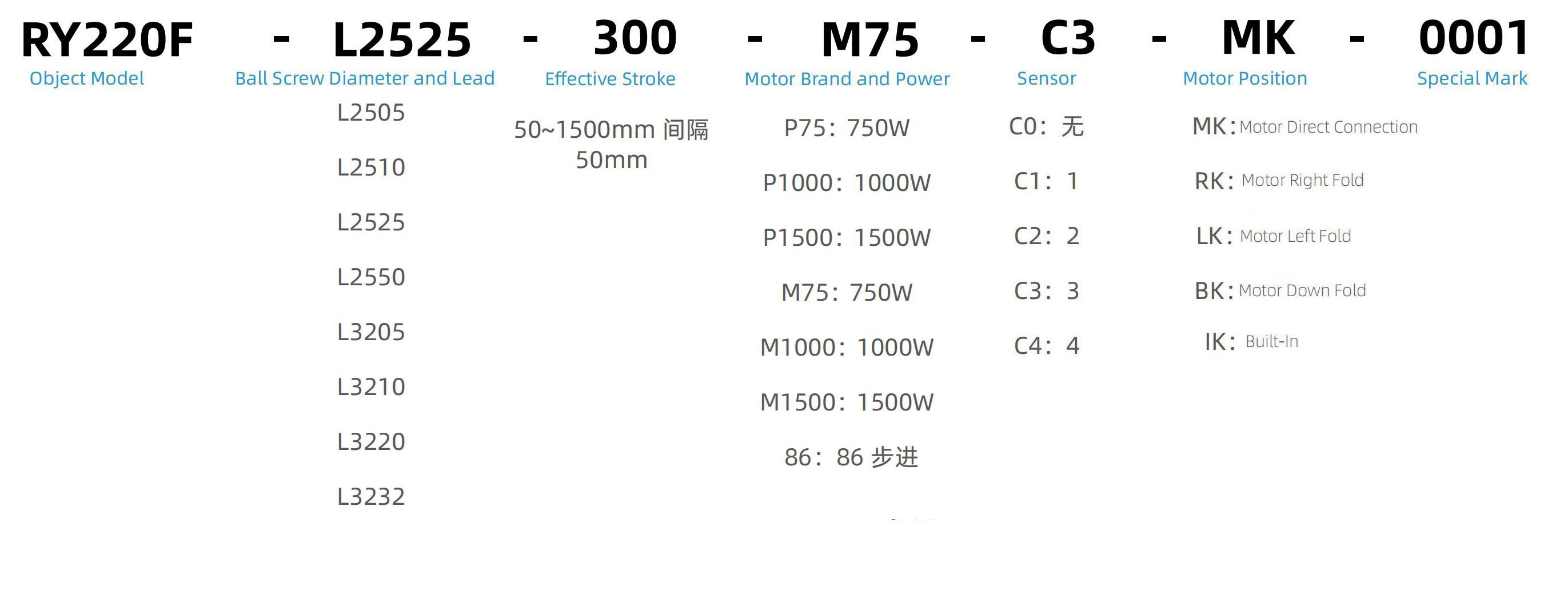

Model representation

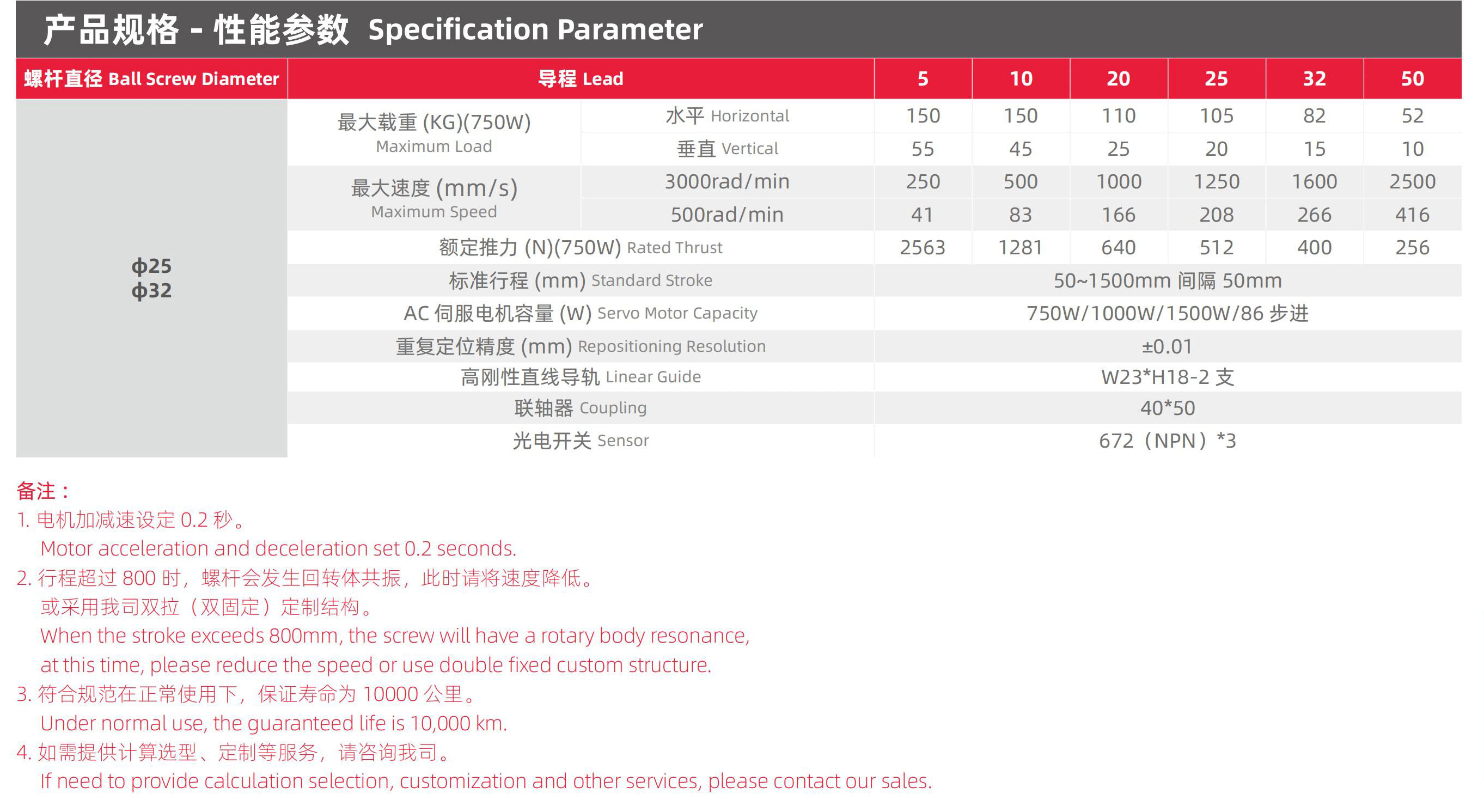

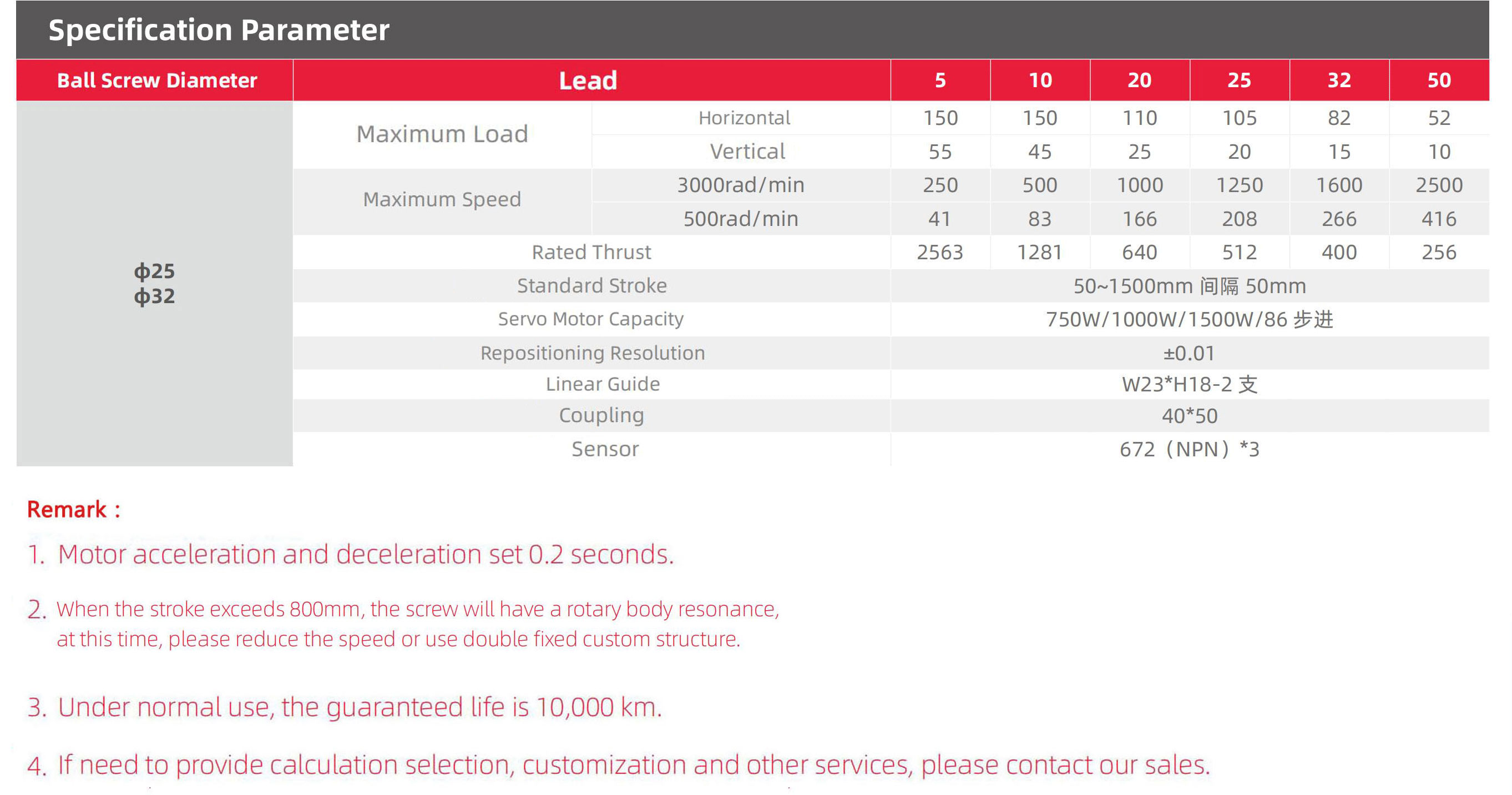

Product specifications - performance parameters




List of Servo Motor Combinations
