首页 > 产品展示 > 滑台模组系列 > 钢带全封闭丝杆模组

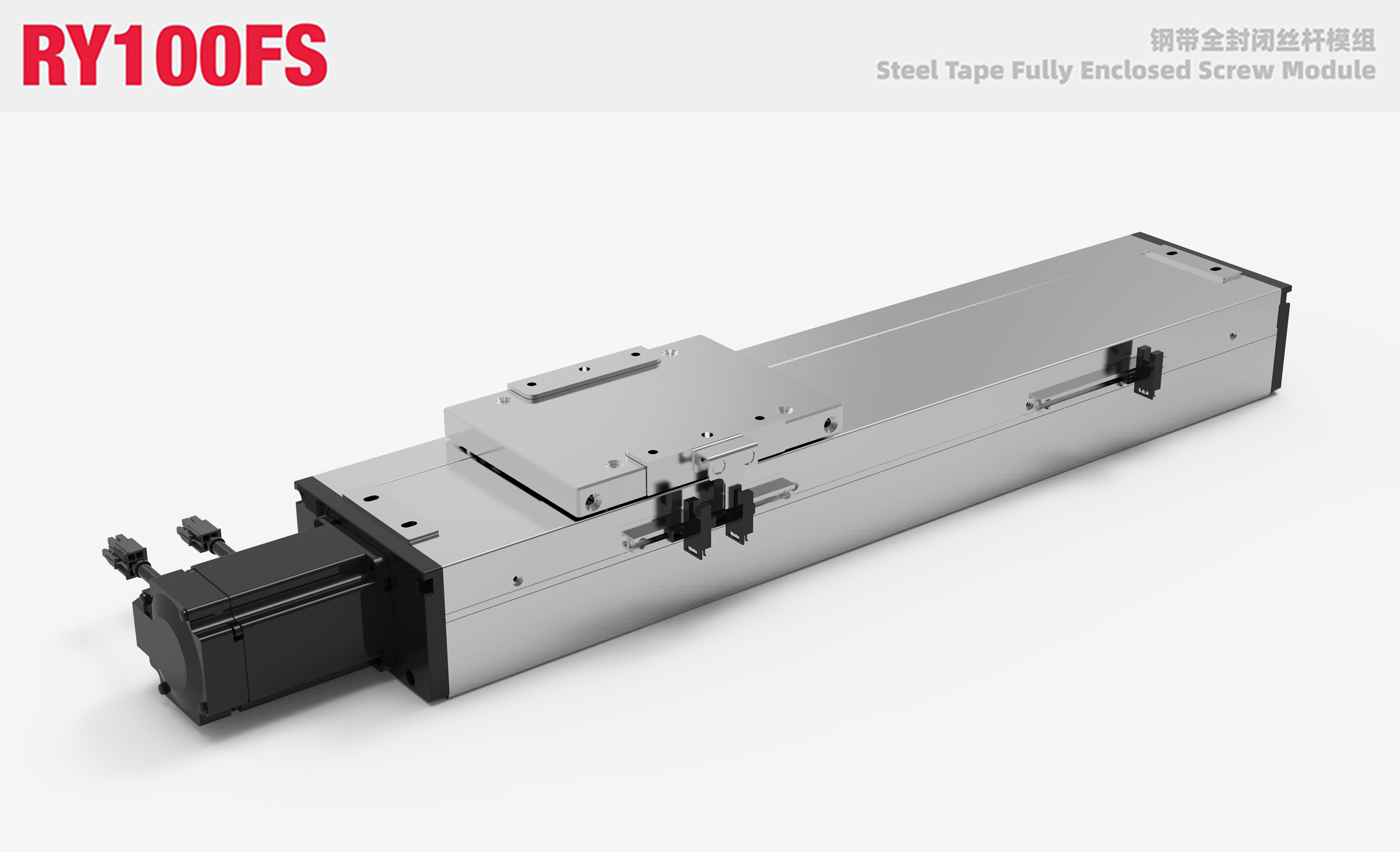

RY110FS steel belt fully enclosed screw module

嘉翼智能设备有限公司是一家专业从事直线导轨、丝杆模组、线性模组、皮带模组、激光运动套件研发、生产、销售及服务于一体的高新科技企业,欢迎致电咨询邓生-18822958970

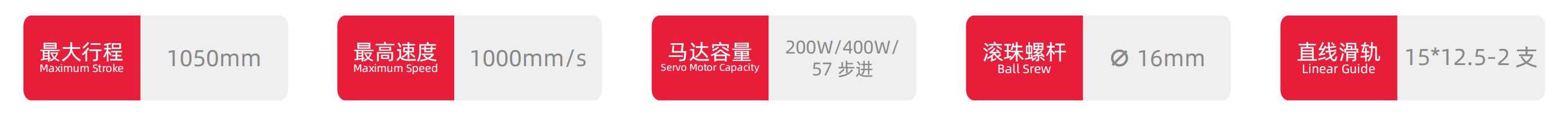

产品参数

The RY110FS semi-enclosed belt module has the following advantages:

1. The core components are imported from Taiwan, including screw rods and guide rails.

2. The body adopts a new type of aviation aluminum material, which has higher rigidity and lighter weight.

3. High stability, high reliability, with an accuracy of up to 0.02mm.

4. Smooth operation, no wear and tear, minimal maintenance, long service life.

5. Compact size, space saving, easy to build.

6. The requirements for the motor are not high, and it can adapt to mainstream motors on the market.

Engineering one-on-one tailored selection, helping you save time and make products more superior.

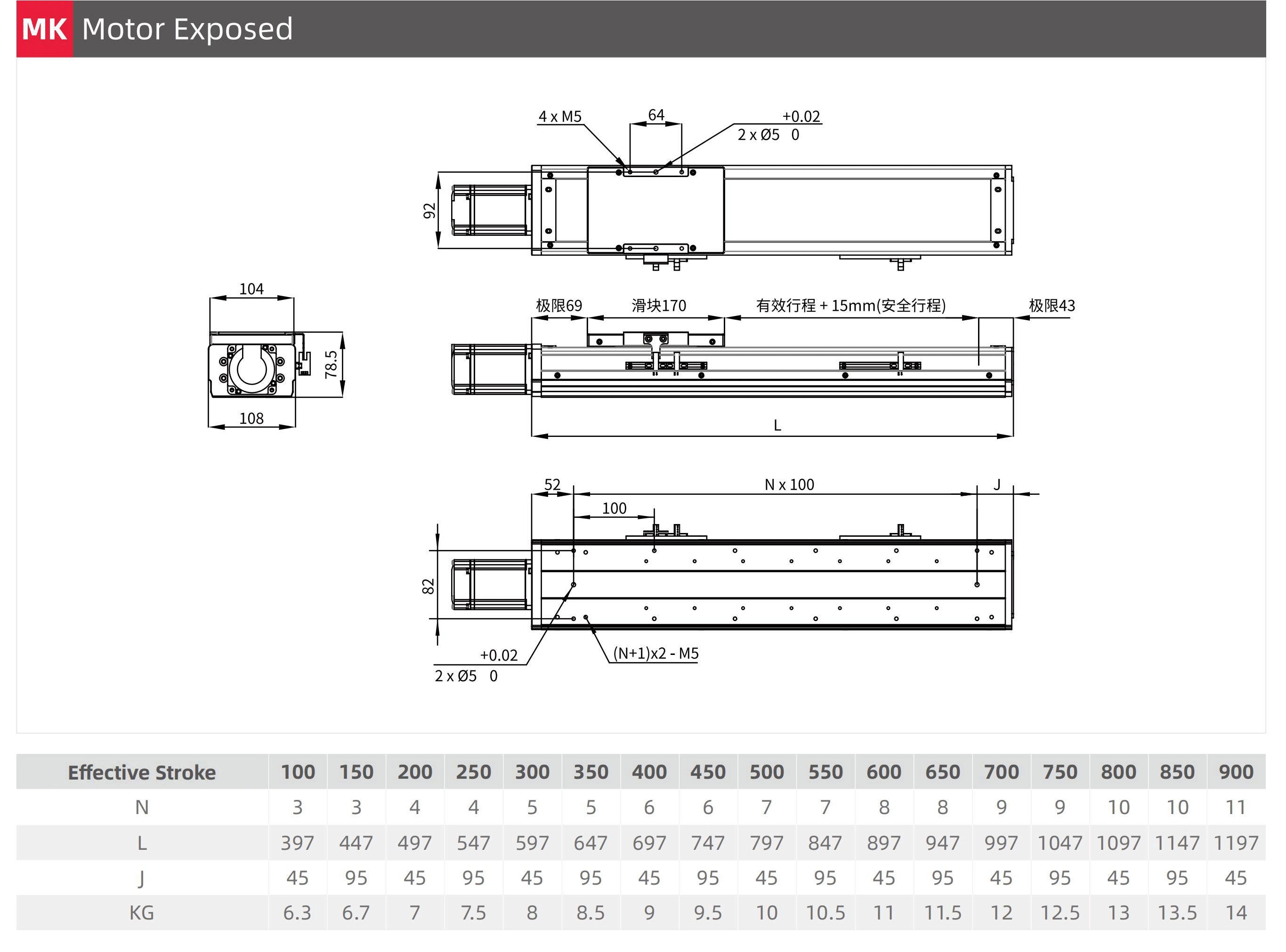

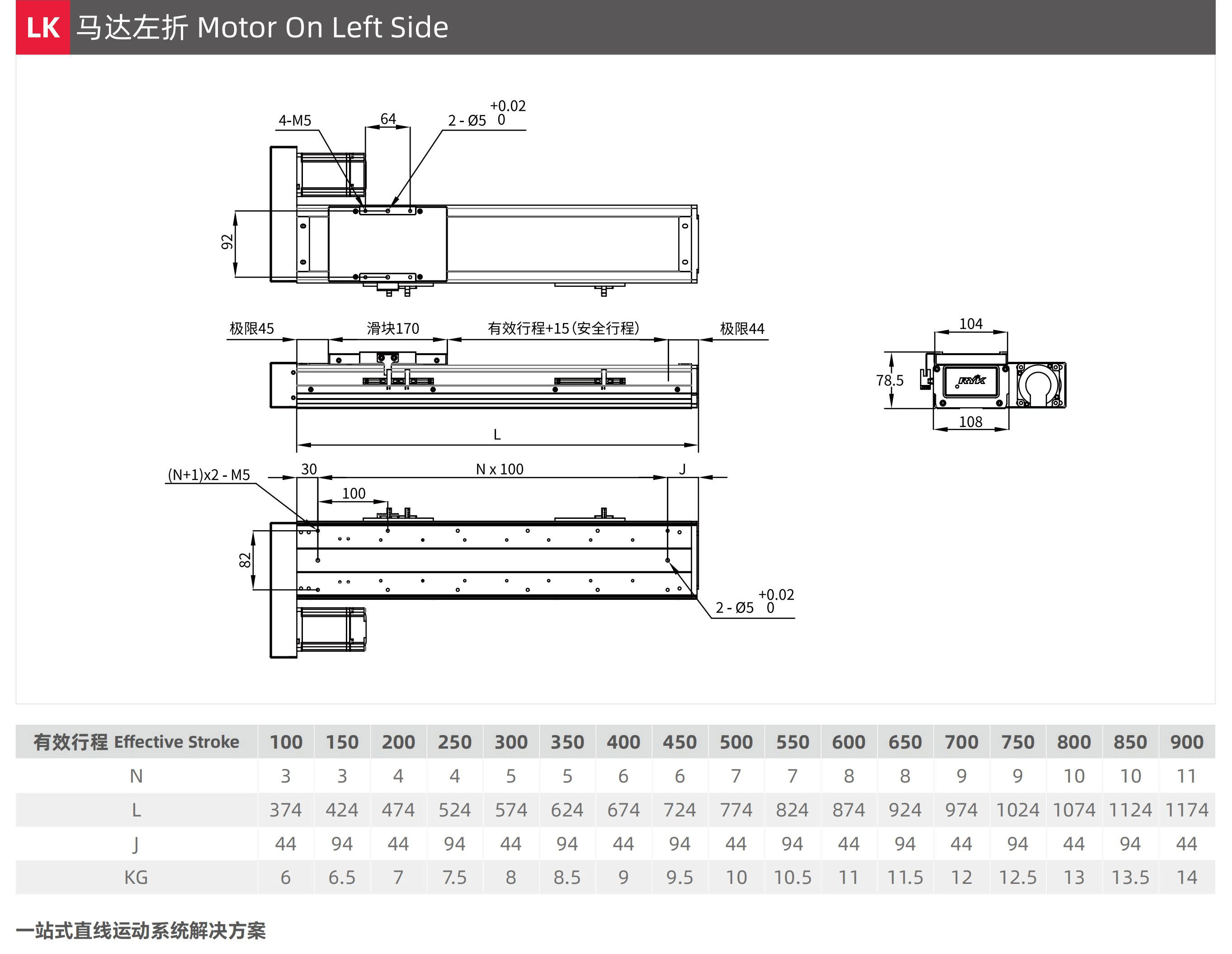

Parameter selection

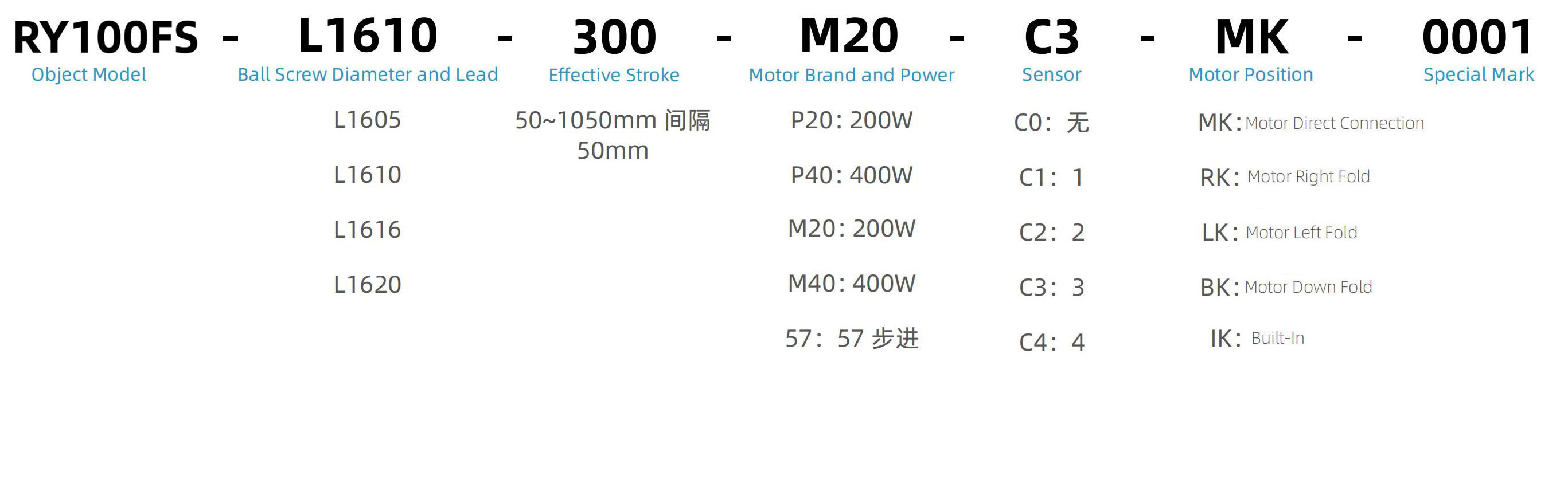

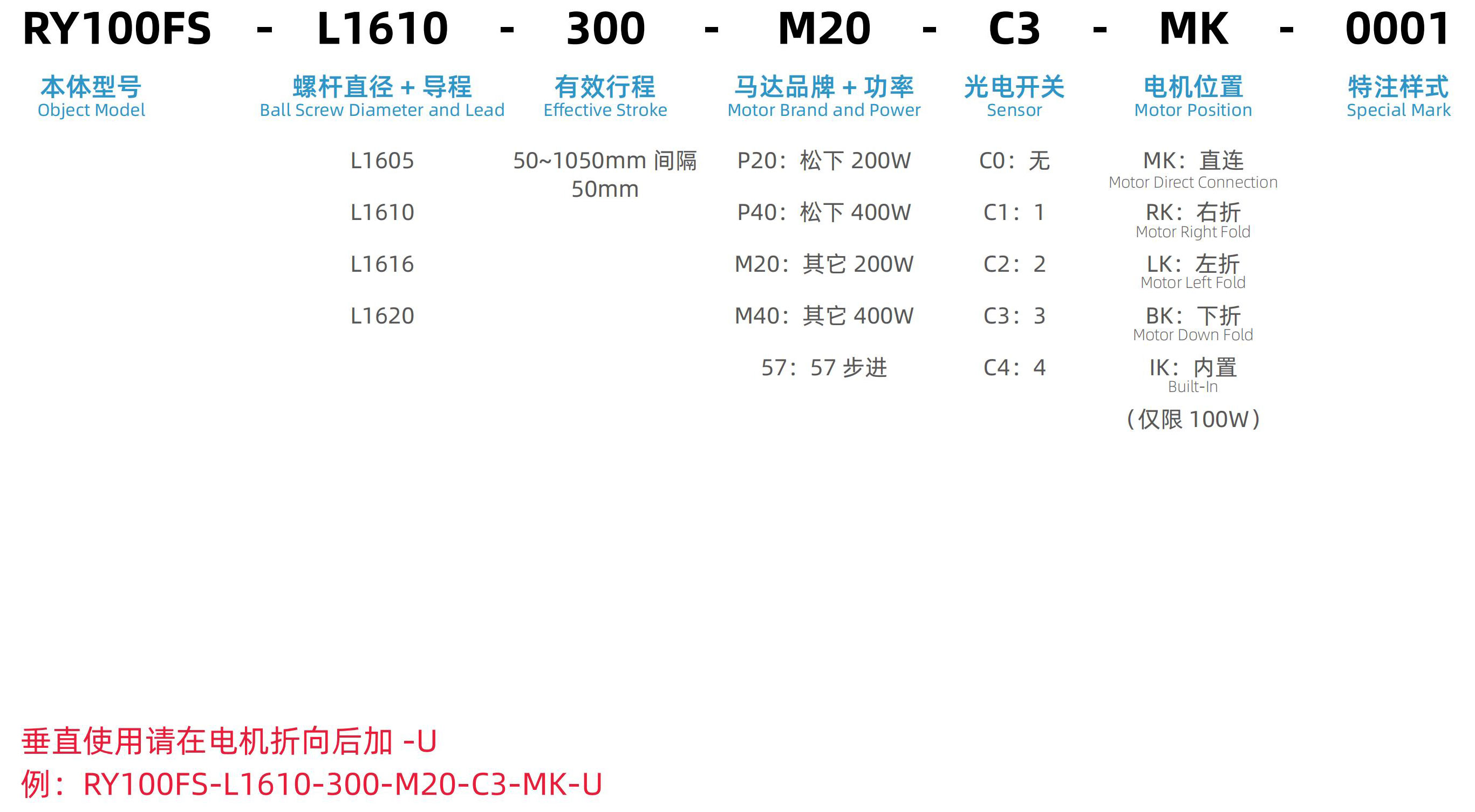

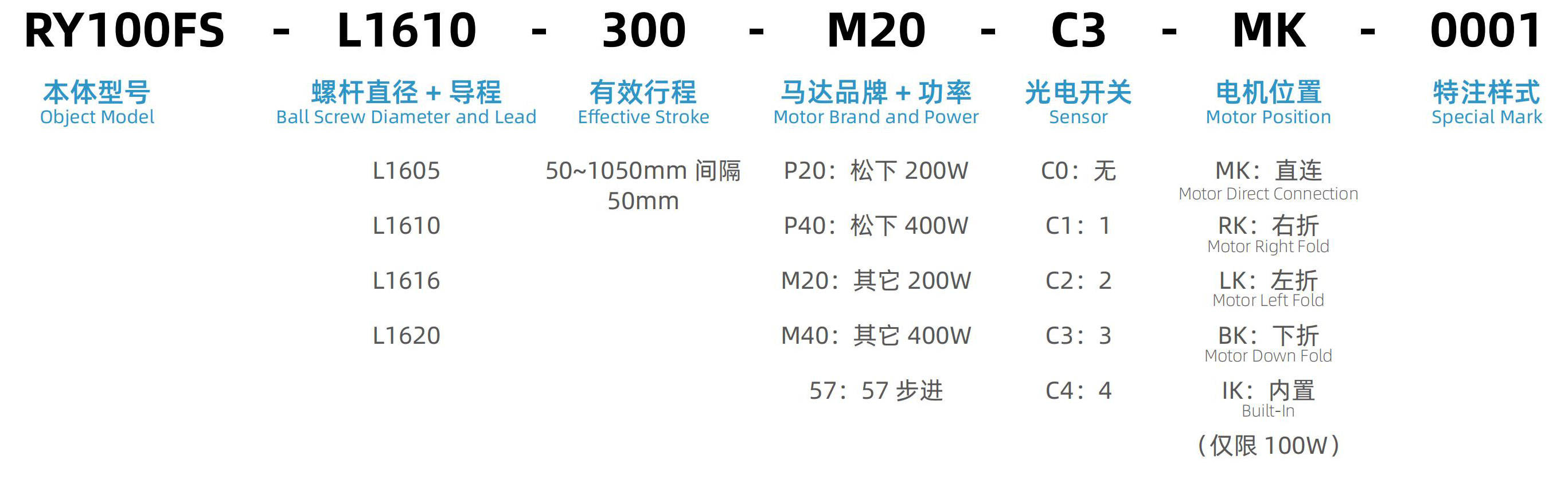

Model representation

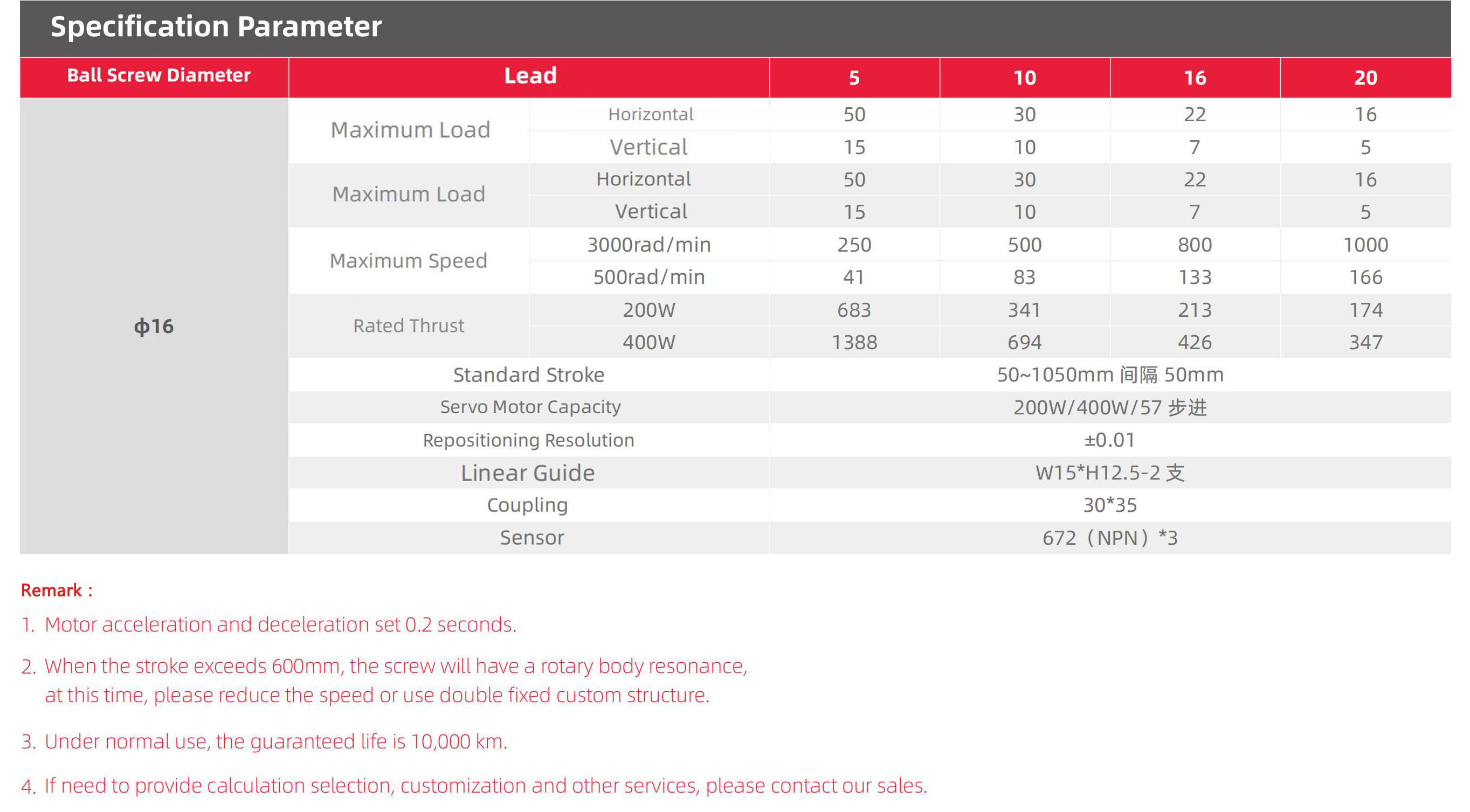

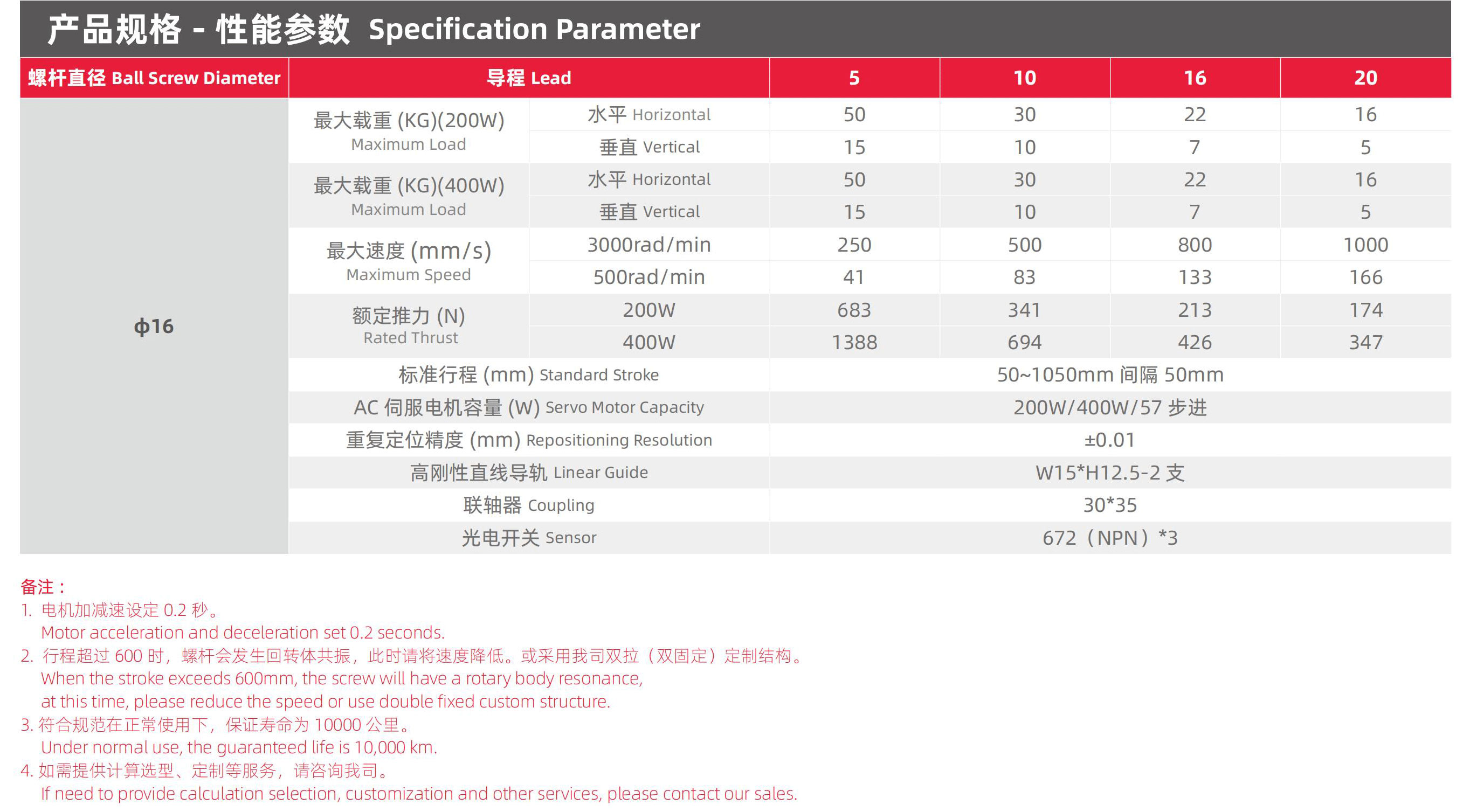

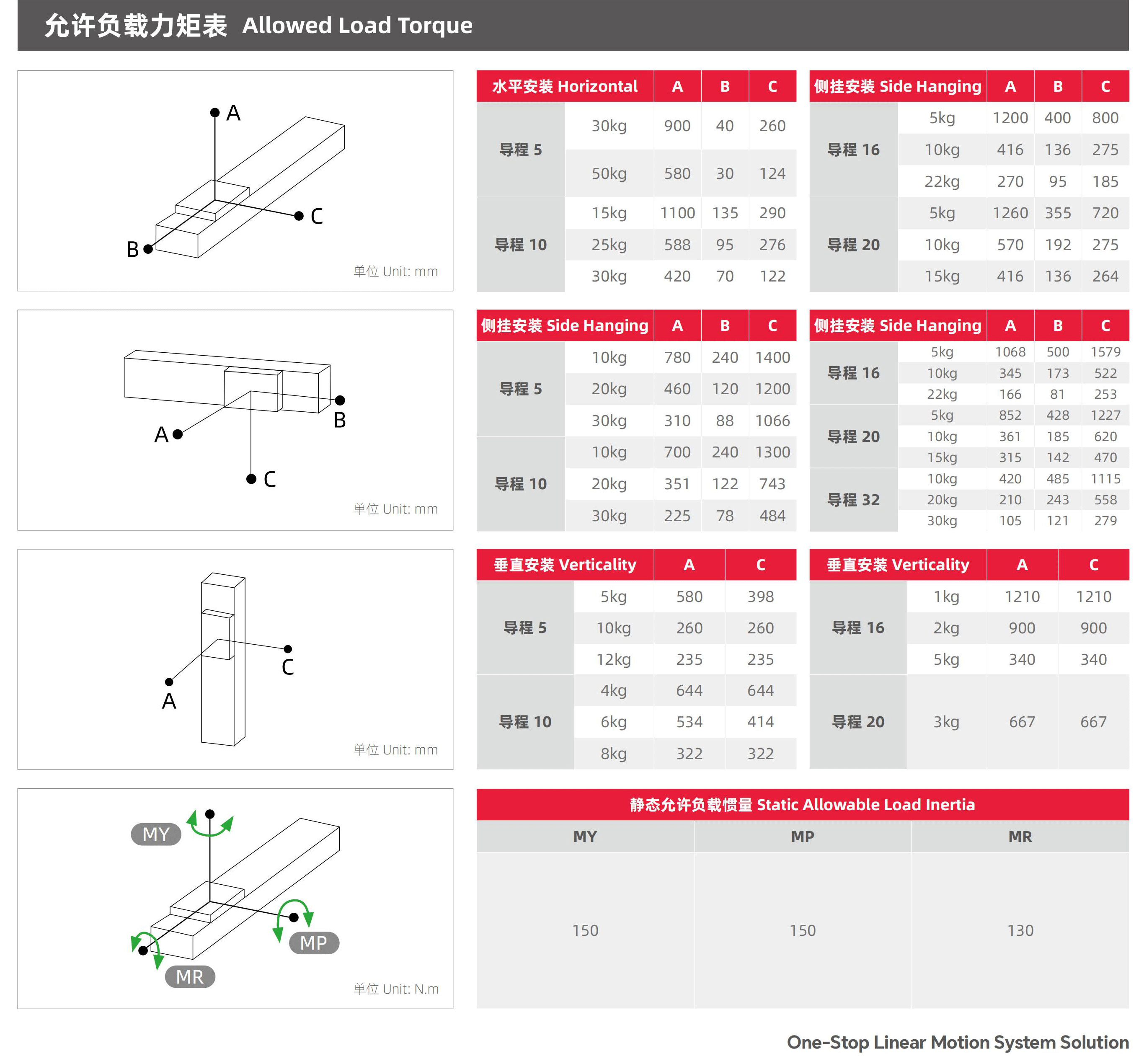

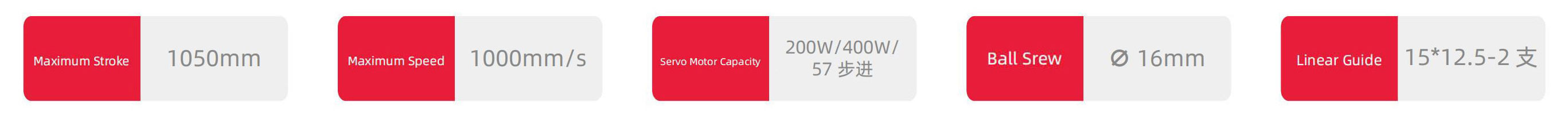

Product specifications - performance parameters




List of Servo Motor Combinations
