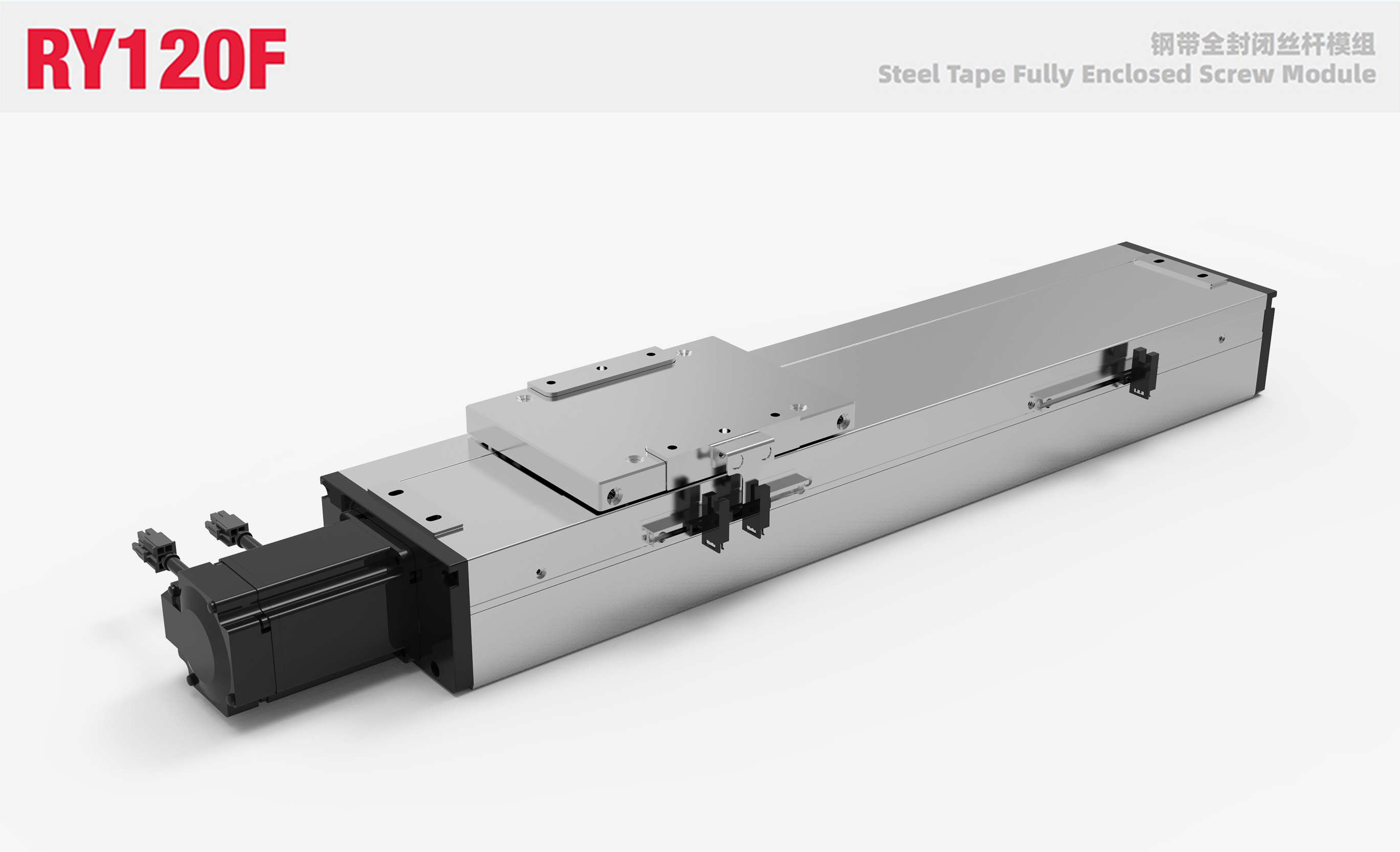

RY120F steel belt fully enclosed screw module

嘉翼智能设备有限公司是一家专业从事直线模组,直线导轨,环形线模组工业机械手等集研发、生产、销售于一体的国家高新技术企业,欢迎致电咨询邓生-18822958970

产品参数

The RY120F semi-enclosed belt module has the following advantages:

1. The core components are imported from Taiwan, including screw rods and guide rails.

2. The body adopts a new type of aviation aluminum material, which has higher rigidity and lighter weight.

3. High stability, high reliability, with an accuracy of up to 0.02mm.

4. Smooth operation, no wear and tear, minimal maintenance, long service life.

5. Compact size, space saving, easy to build.

6. The requirements for the motor are not high, and it can adapt to mainstream motors on the market.

Engineering one-on-one tailored selection, helping you save time and make products more superior.

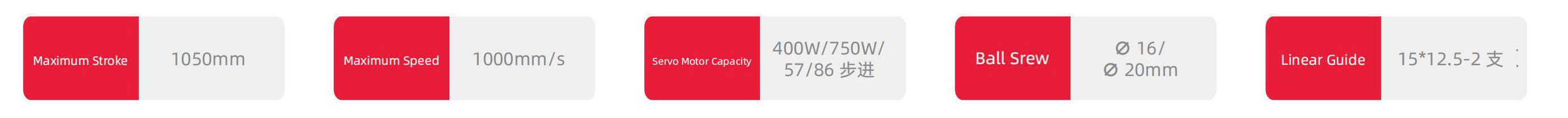

Parameter selection

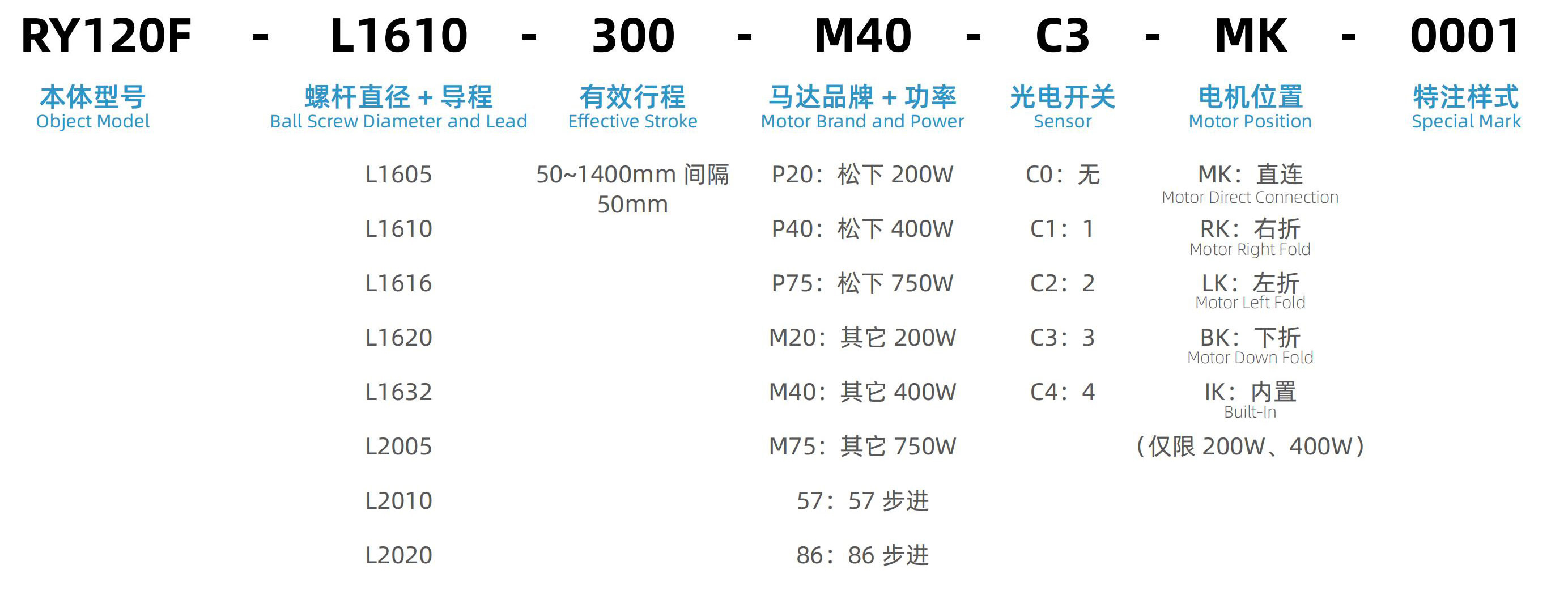

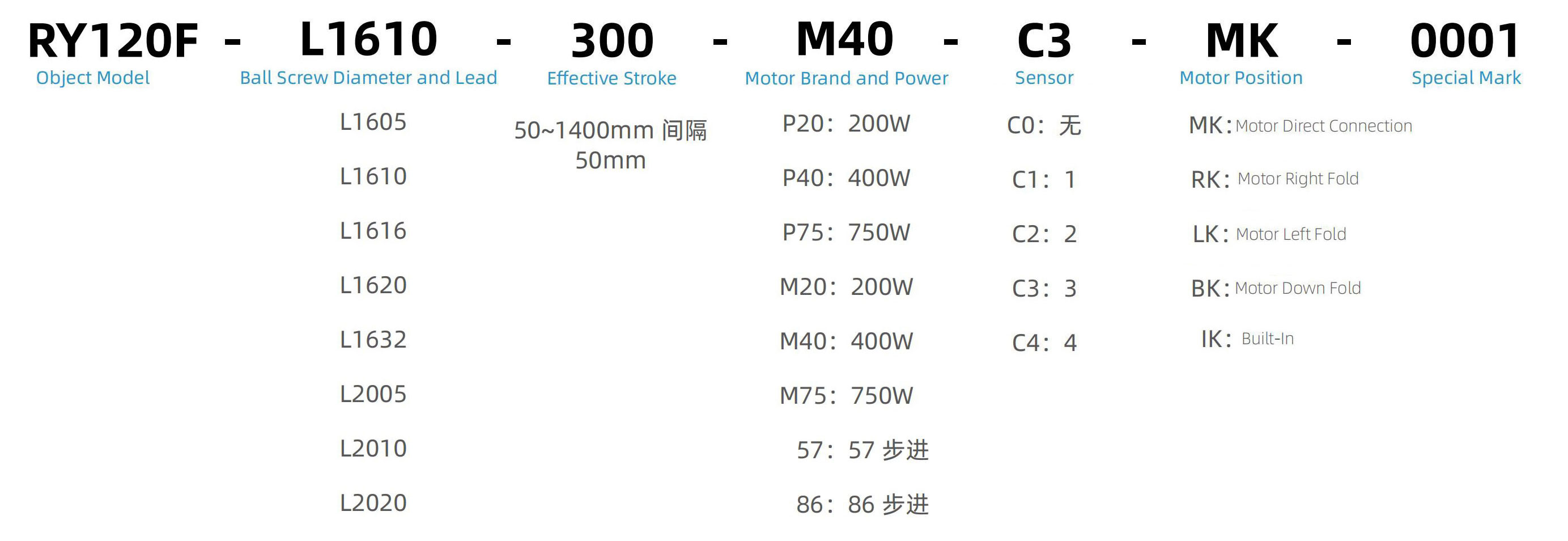

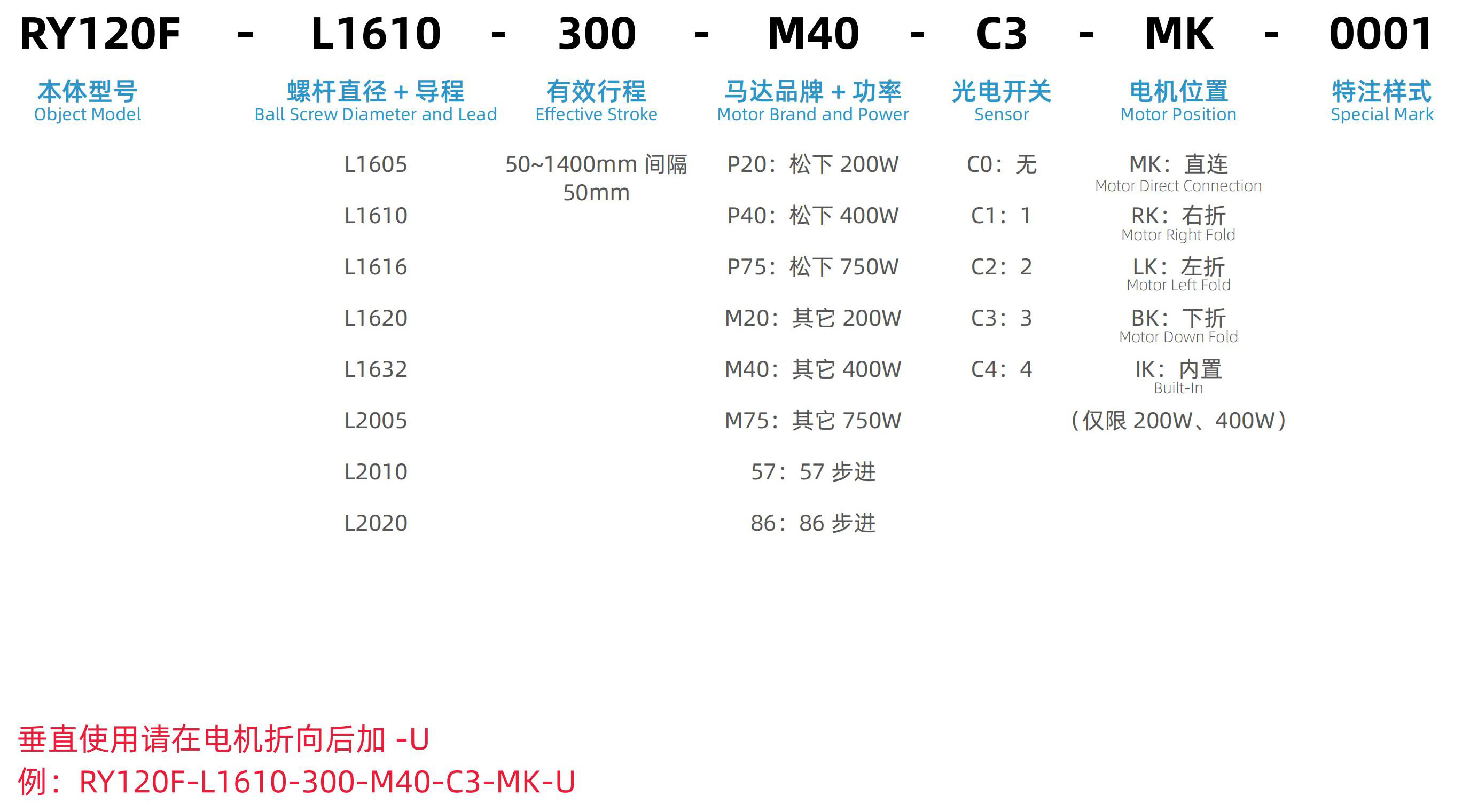

Model representation

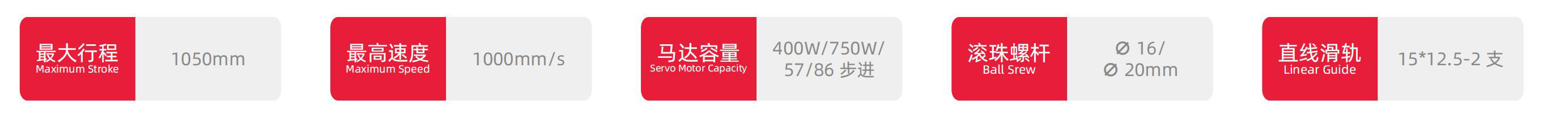

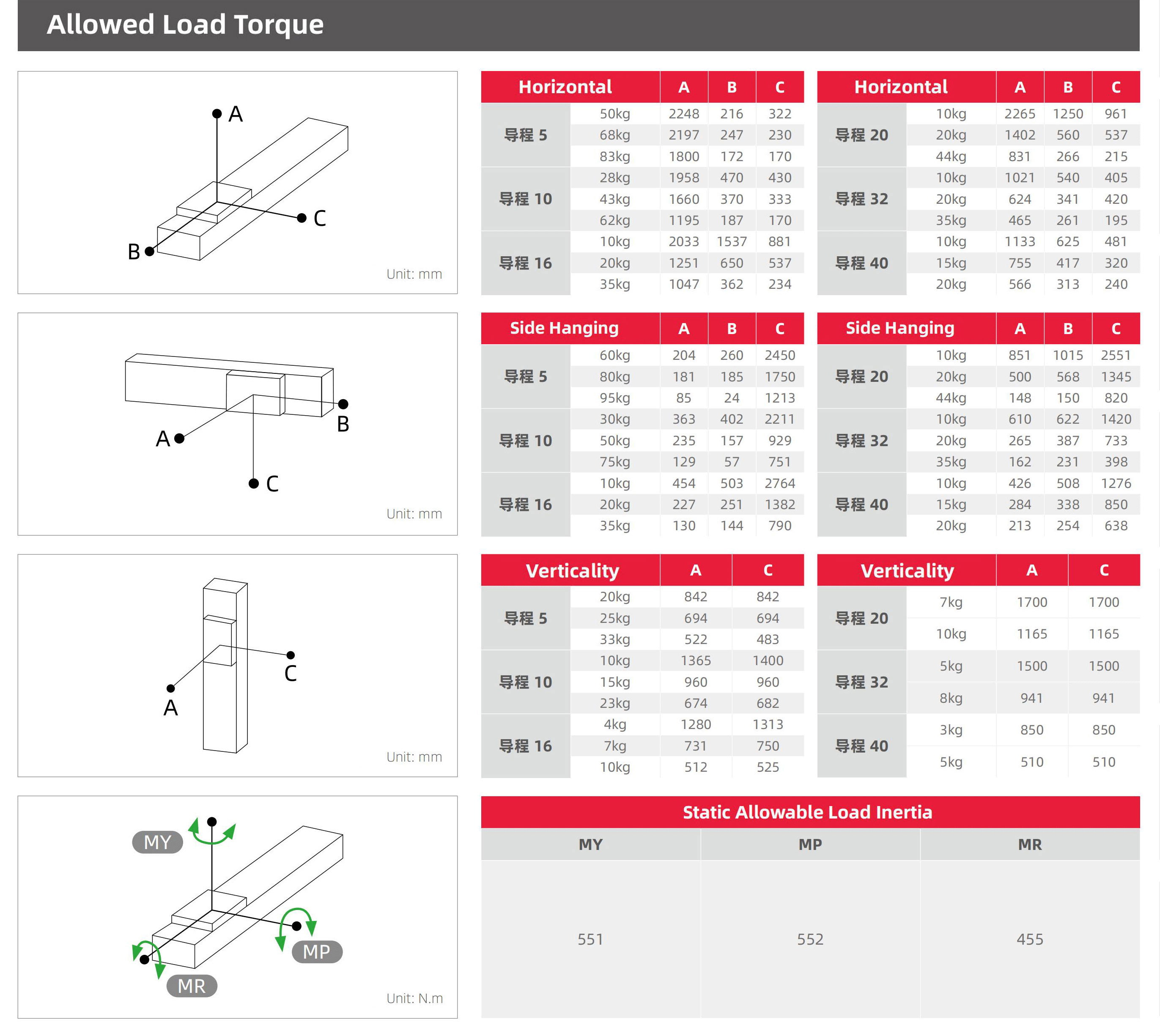

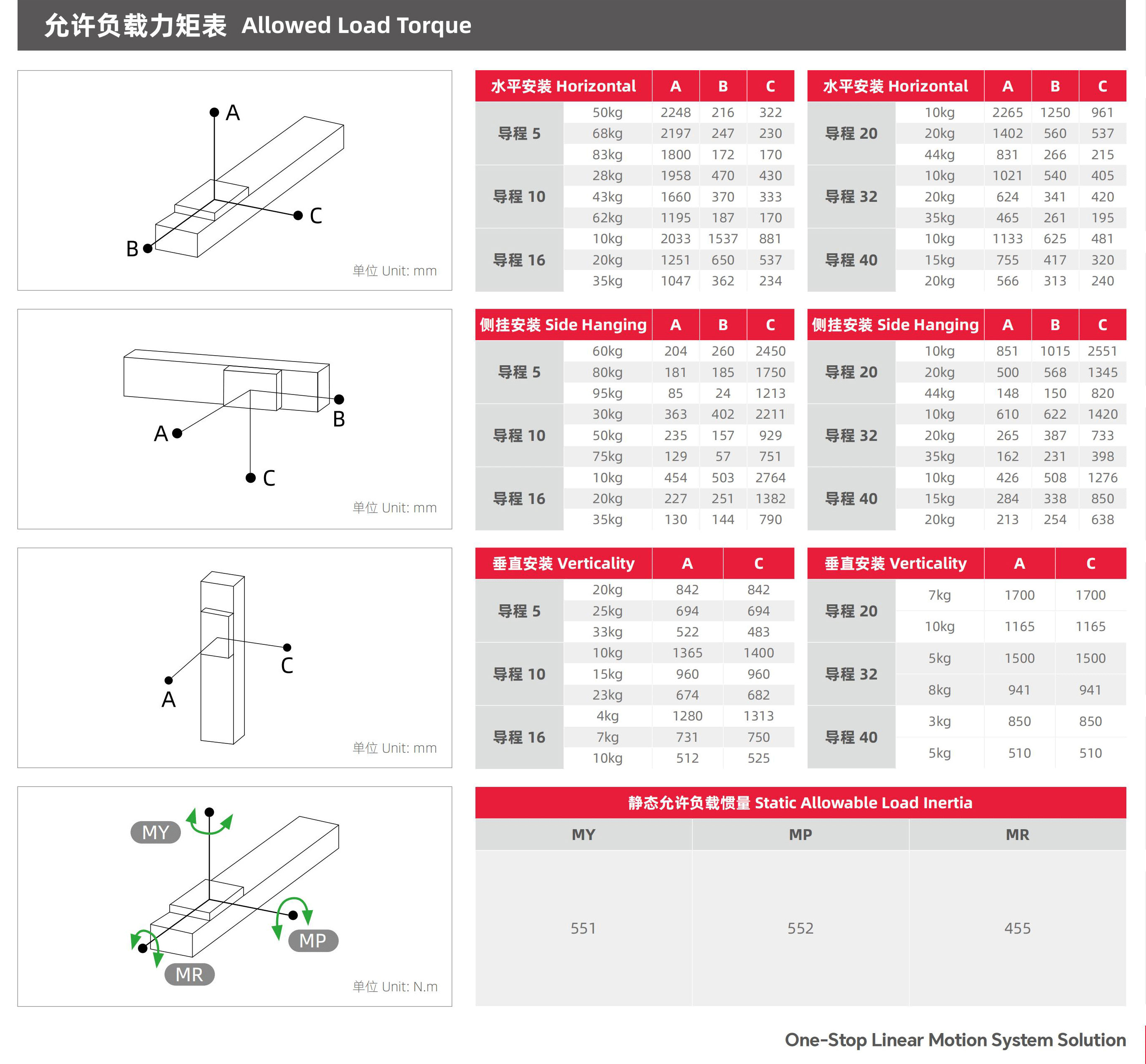

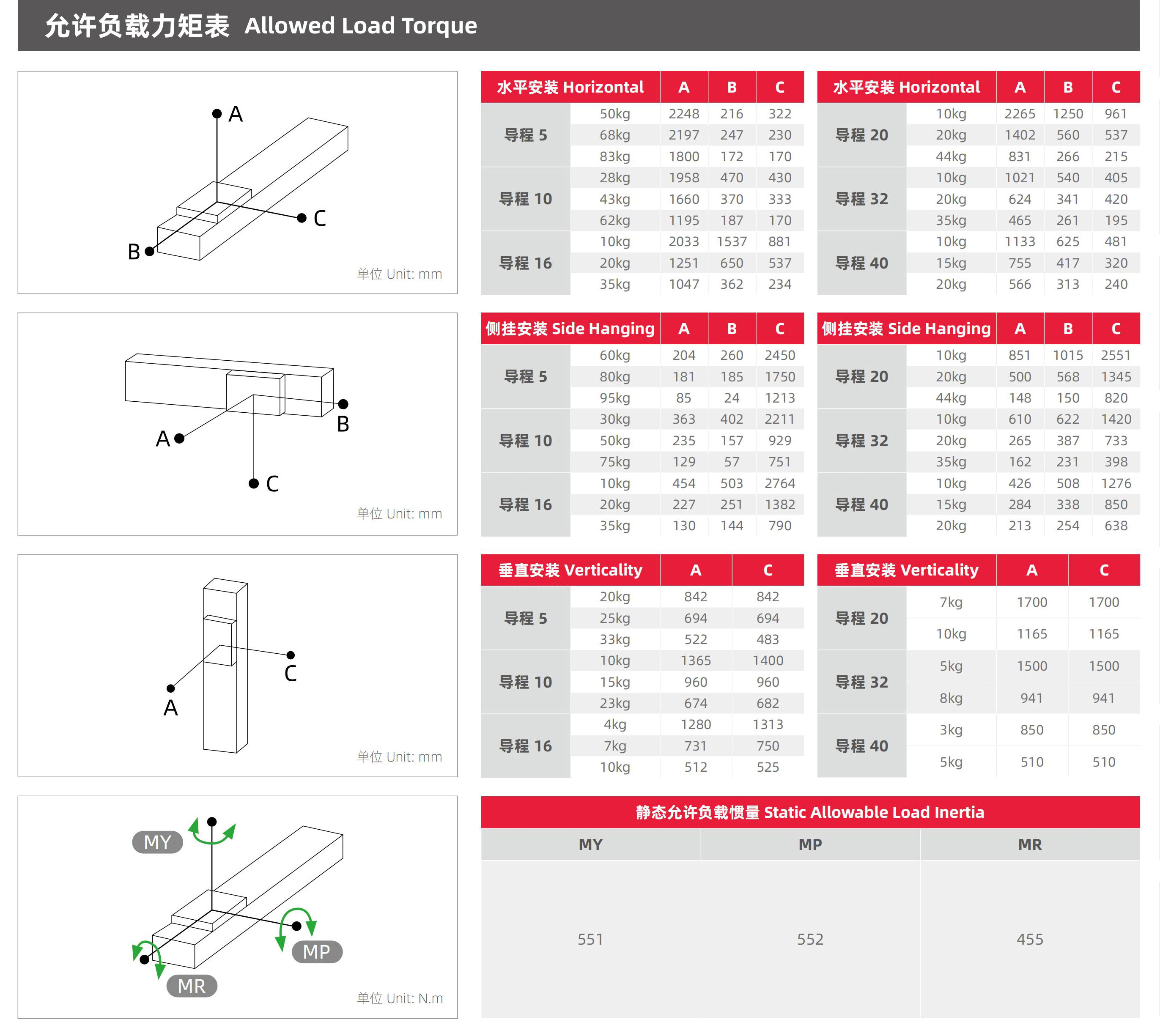

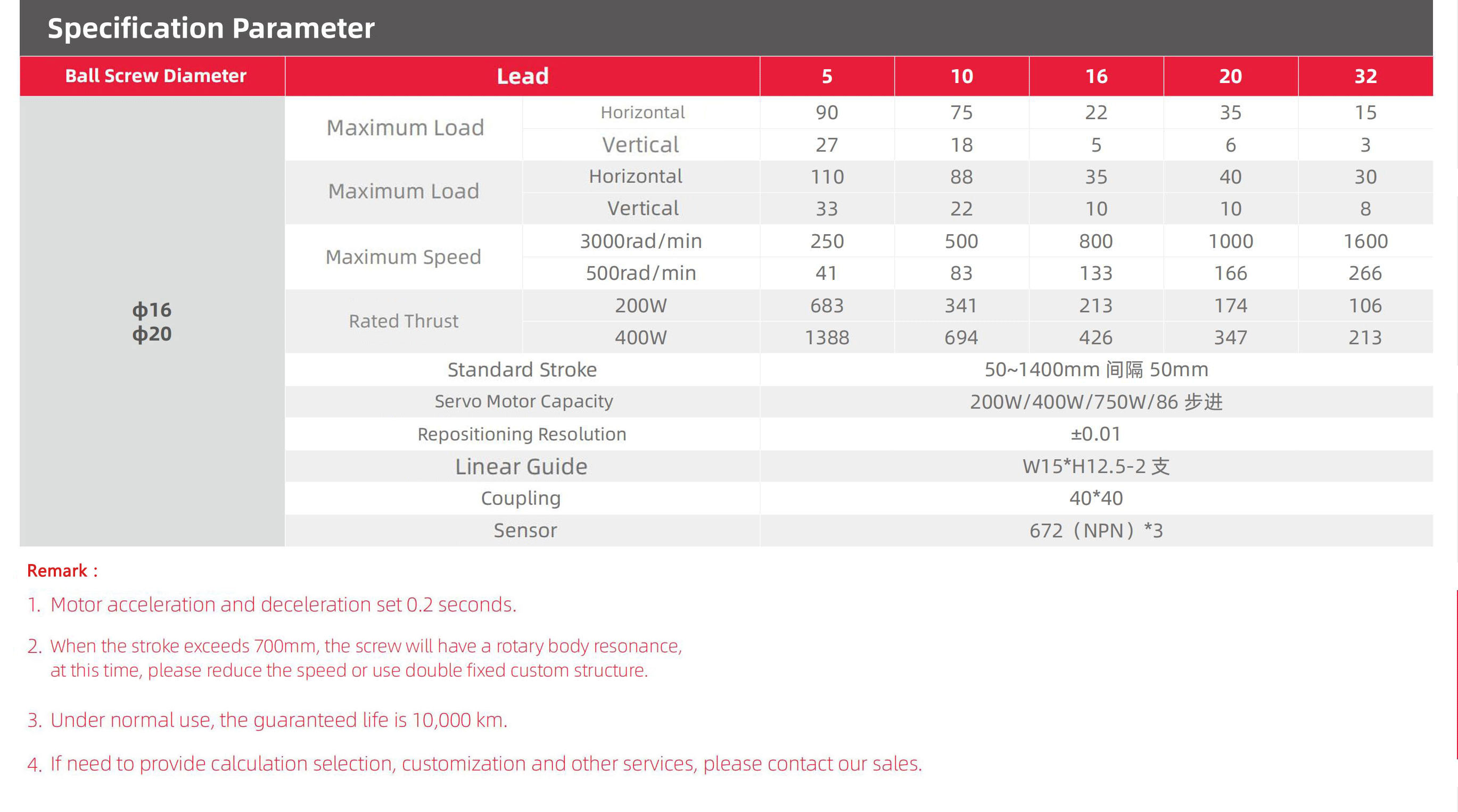

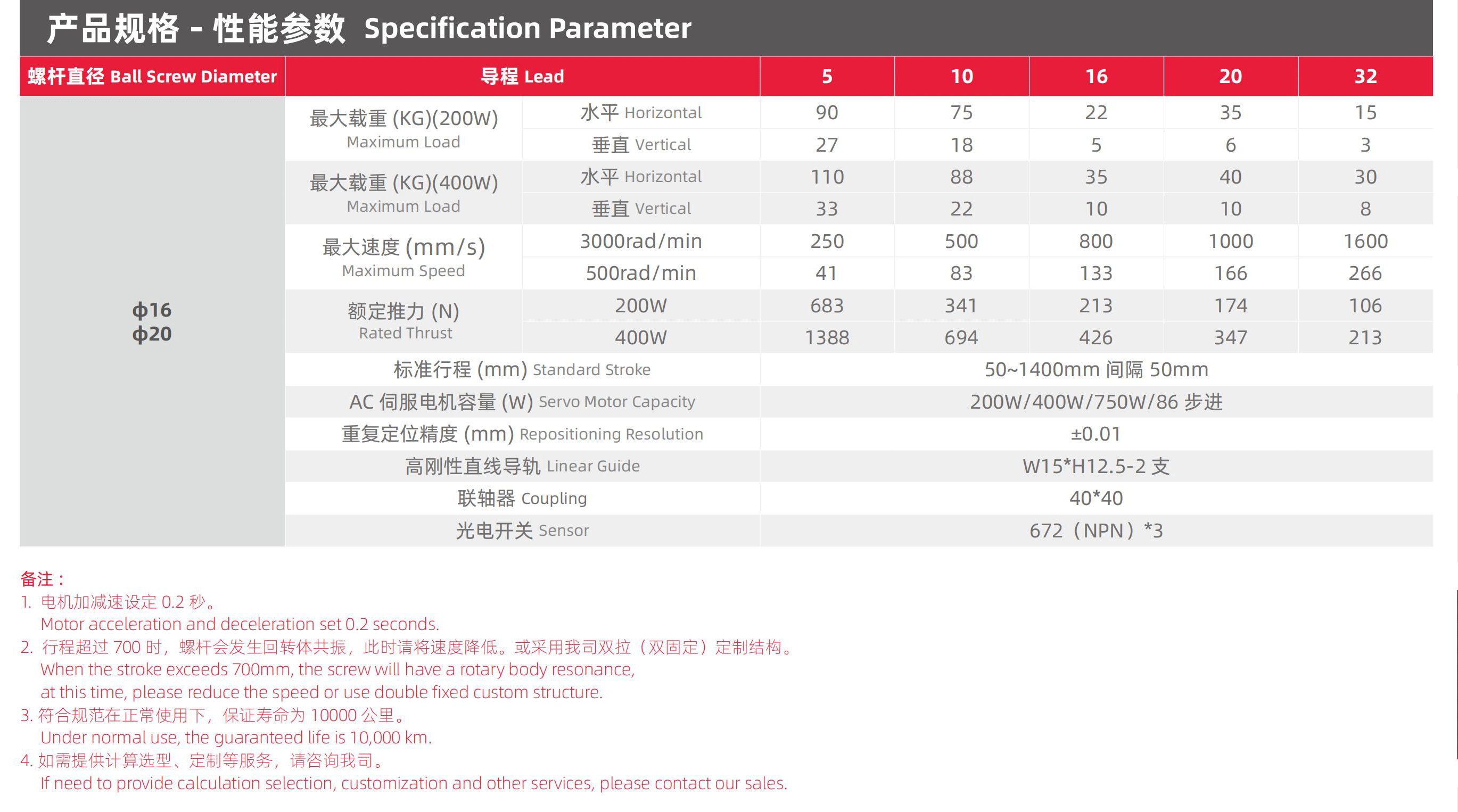

Product specifications - performance parameters




List of Servo Motor Combinations
