RY80EL Linear Guide European Standard Timing Belt Module

Jiayi Intelligent Equipment produces and sells its own ultra-long-range linear modules, featuring high precision, low noise, and high load capacity. We have our own factory and offer a wide range of products at affordable prices. We provide factory direct sales. For inquiries about our ultra-long-range linear modules, please contact Jiayi Linear Module Manufacturer, Deng Sheng, at 18822958970

Product Parameters

The RY80EL semi-enclosed belt module has the following advantages:

1. The core components are imported from Taiwan, including screw rods and guide rails.

2. The body adopts a new type of aviation aluminum material, which has higher rigidity and lighter weight.

3. High stability, high reliability, with an accuracy of up to 0.02mm.

4. Smooth operation, no wear and tear, minimal maintenance, long service life.

5. Compact size, space saving, easy to build.

6. The requirements for the motor are not high, and it can adapt to mainstream motors on the market.

Engineering one-on-one tailored selection, helping you save time and make products more superior.


Param Selection

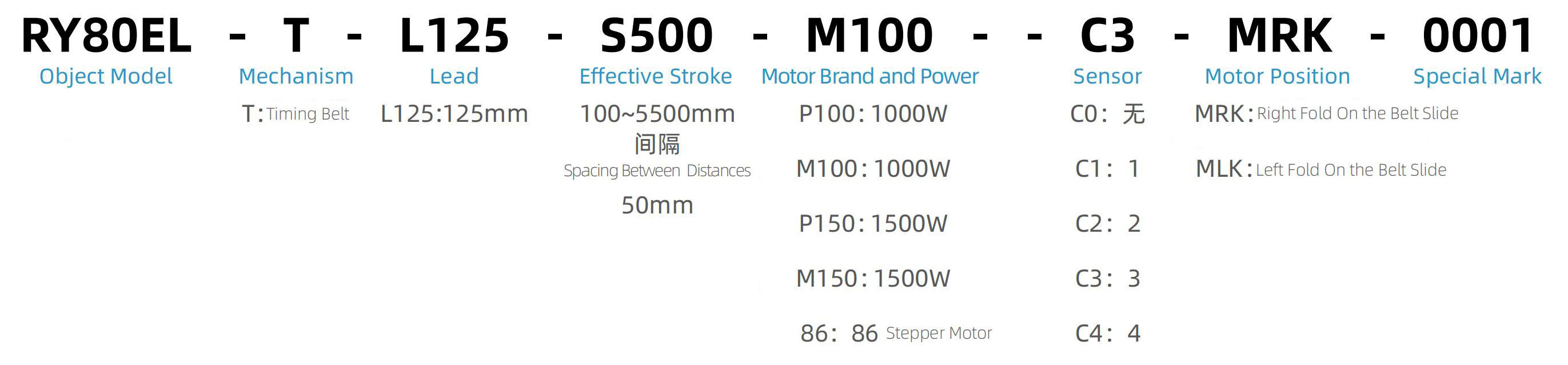

Model representation

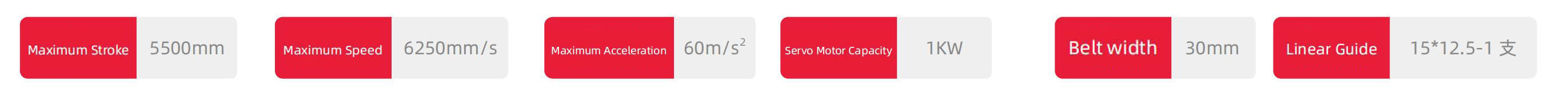

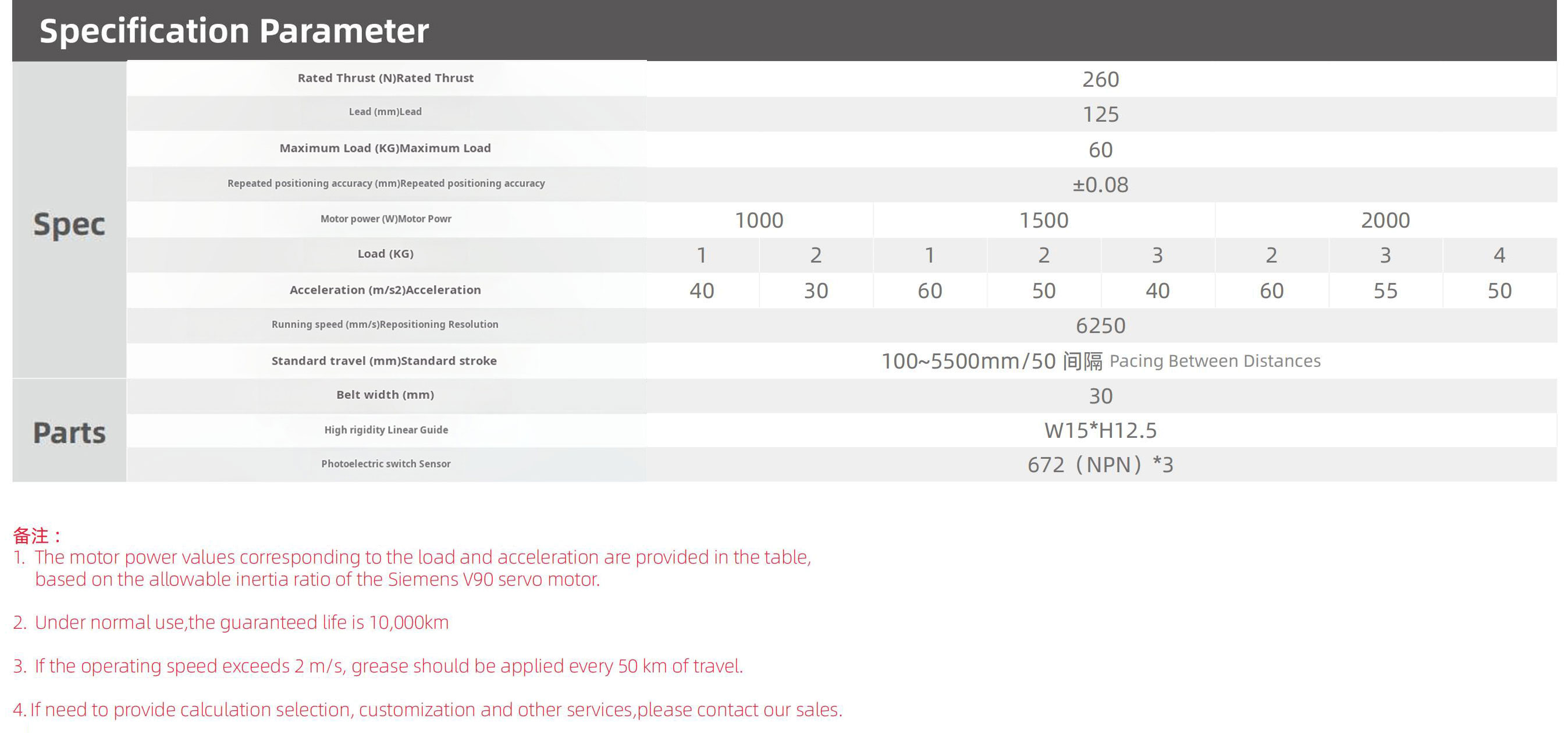

Product specifications - performance parameters




List of Servo Motor Combinations
