Customized single-axis and multi-axis linear modules produced by our factory feature high positioning accuracy, smooth and stable operation, high-speed silent performance, and high cost-effectiveness. We guarantee timely delivery. Choose Jiayi Intelligent for customized linear modules. We are trustworthy and experienced, with 19 years of focus on linear modules. Quality is guaranteed, and after-sales service is worry-free. Deng Sheng - 18822958970

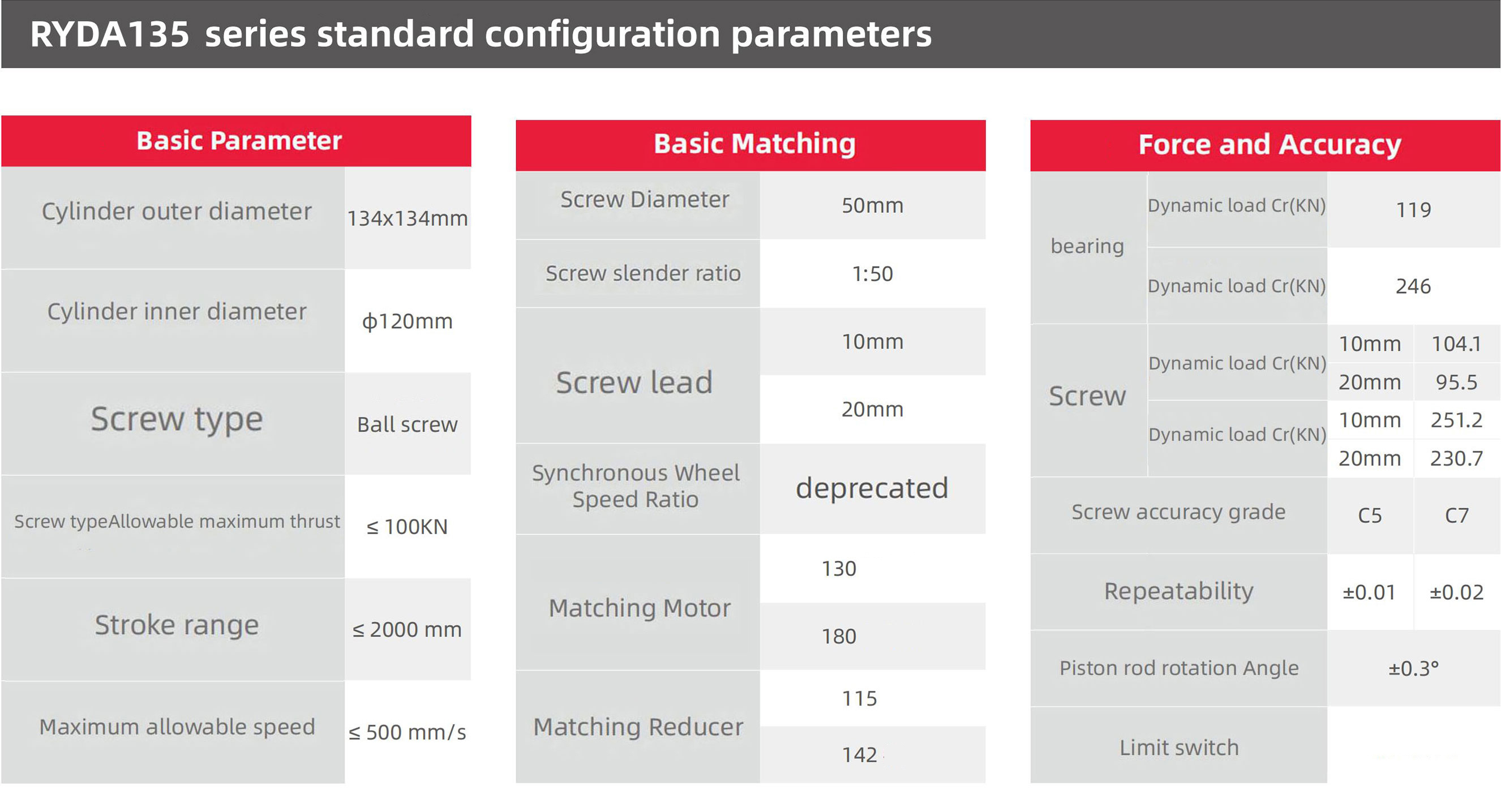

The RYDA135 semi-enclosed belt module has the following advantages:
1. The core components are imported from Taiwan, including screw rods and guide rails.
2. The body adopts a new type of aviation aluminum material, which has higher rigidity and lighter weight.
3. High stability, high reliability, with an accuracy of up to 0.02mm.
4. Smooth operation, no wear and tear, minimal maintenance, long service life.
5. Compact size, space saving, easy to build.
6. The requirements for the motor are not high, and it can adapt to mainstream motors on the market.
Engineering one-on-one tailored selection, helping you save time and make products more superior.
