RY170-T Semi-Sealed Timing Belt Module

Jiayi Intelligence specializes in producing high-precision linear modules. With high-end design, high rigidity and precision, stable performance, low prices, and fast delivery, we guarantee quality! With 19 years of global R&D experience, our technology is mature, efficient, and stable. We provide free customized solutions for you! Deng Sheng - 18822958970

Product Parameters

The RY170-T semi-enclosed belt module has the following advantages:

1. The core components are imported from Taiwan, including screw rods and guide rails.

2. The body adopts a new type of aviation aluminum material, which has higher rigidity and lighter weight.

3. High stability, high reliability, with an accuracy of up to 0.02mm.

4. Smooth operation, no wear and tear, minimal maintenance, long service life.

5. Compact size, space saving, easy to build.

6. The requirements for the motor are not high, and it can adapt to mainstream motors on the market.

Engineering one-on-one tailored selection, helping you save time and make products more superior.

Param Selection

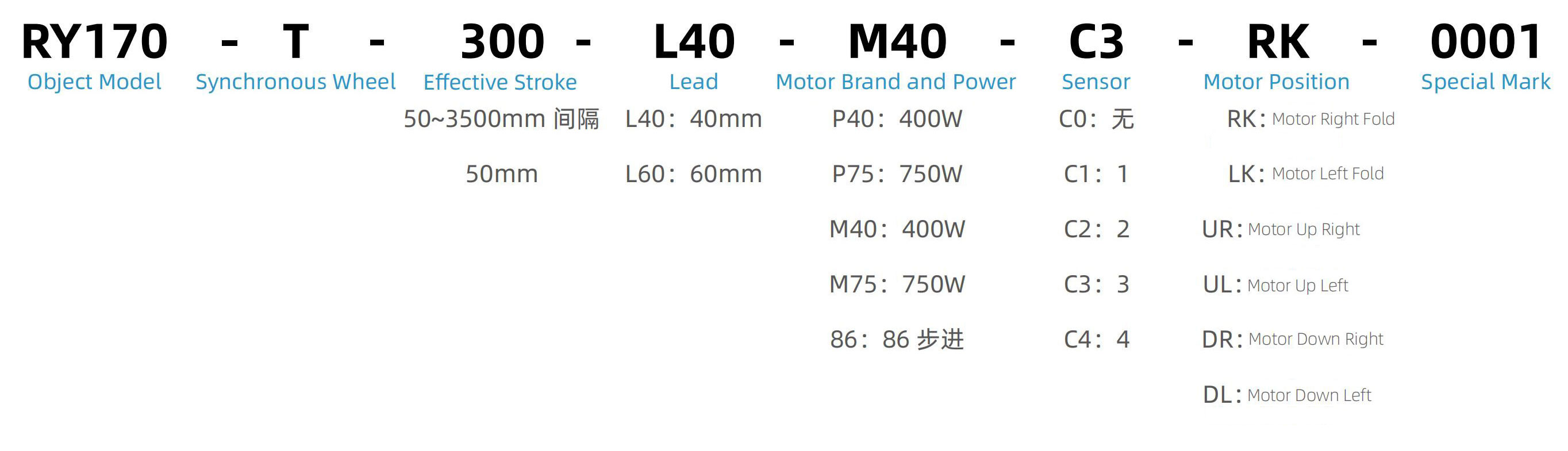

Model representation

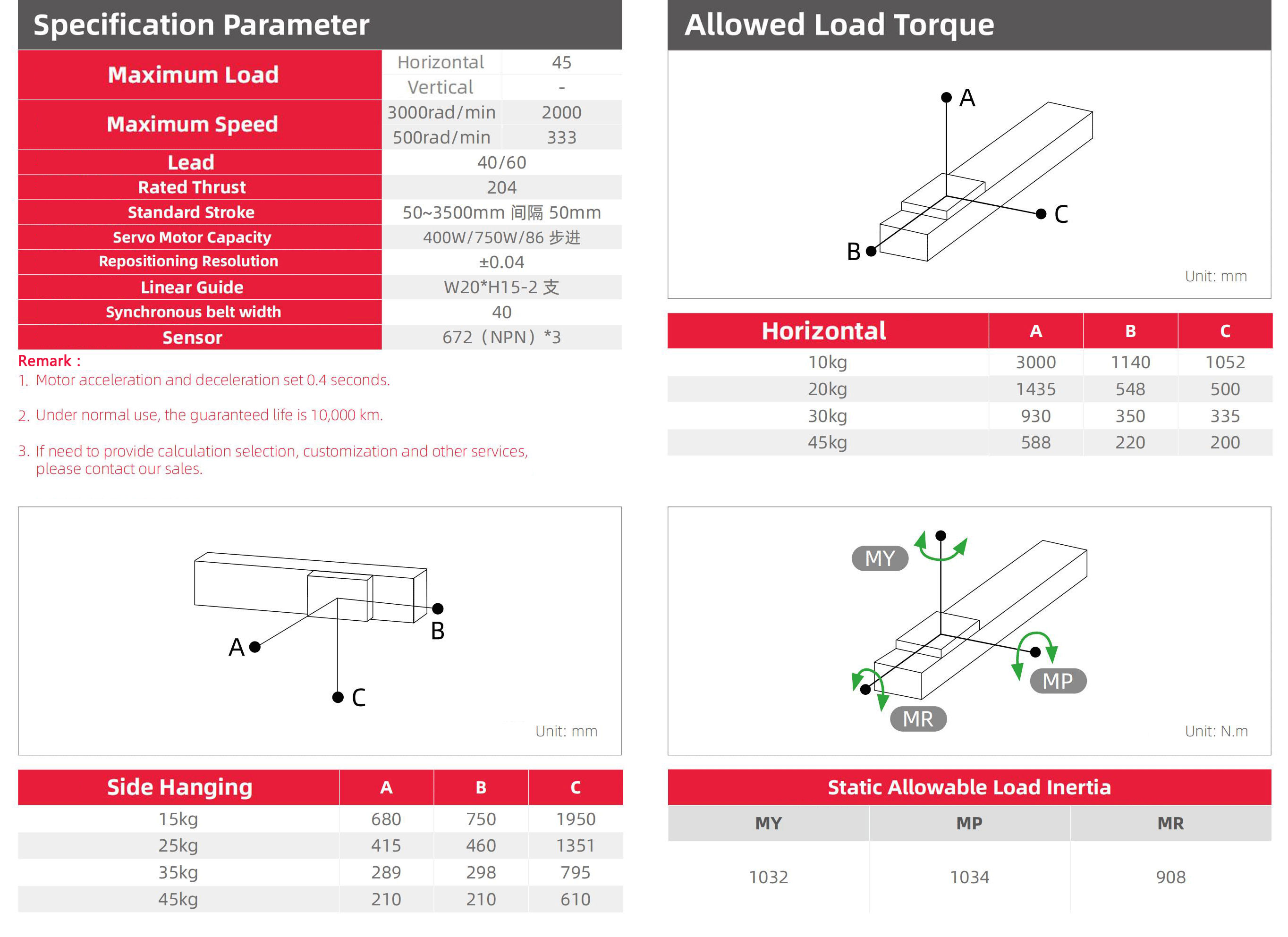

Product specifications - performance parameters




List of compatible servo motors
